Lighter Spare Tire Mount Backup Camera 4.0
For Jeep Wrangler

Lighter Spare Tire Mount Backup Camera 4.0 For Jeep Wrangler

Name: Lighter Spare Tire Mount Backup Camera 4.0 For Jeep Wrangler
Brand: EWAY
SKU: CT-J1004
Price: 79.99 USD
Availability: InStock

Model: EW-J1004

NTSC IP68

A wired spare tire mount backup camera for Jeep Wrangler, featuring IP68 waterproof protection, 680×480 CVBS output and a 125° horizontal viewing angle.

$79.99 /USD

Description

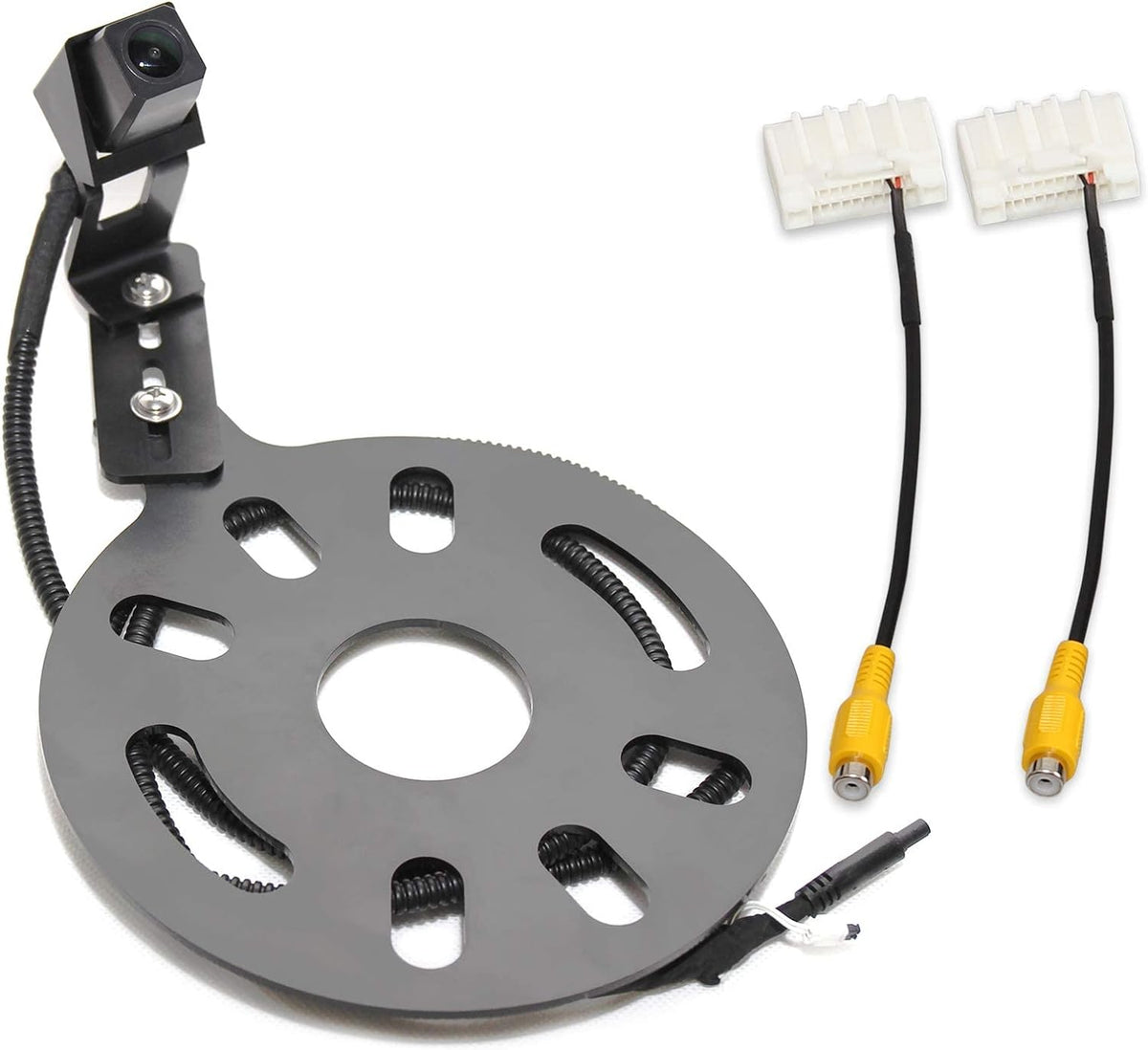

A Classic 2.0 spare tire mount backup camera designed for Jeep Wrangler rear-view and reversing applications. The camera provides a 125° horizontal field of view to help improve rear visibility when backing up, parking or connecting a trailer.

With an IP68 waterproof rating, 680×480 resolution, CVBS video output and DC 5V–24V wide voltage input, it is built for reliable outdoor use in changing weather and vehicle power conditions. The vehicle-specific spare tire mounting structure helps keep installation clean and suitable for Jeep Wrangler applications.

Features

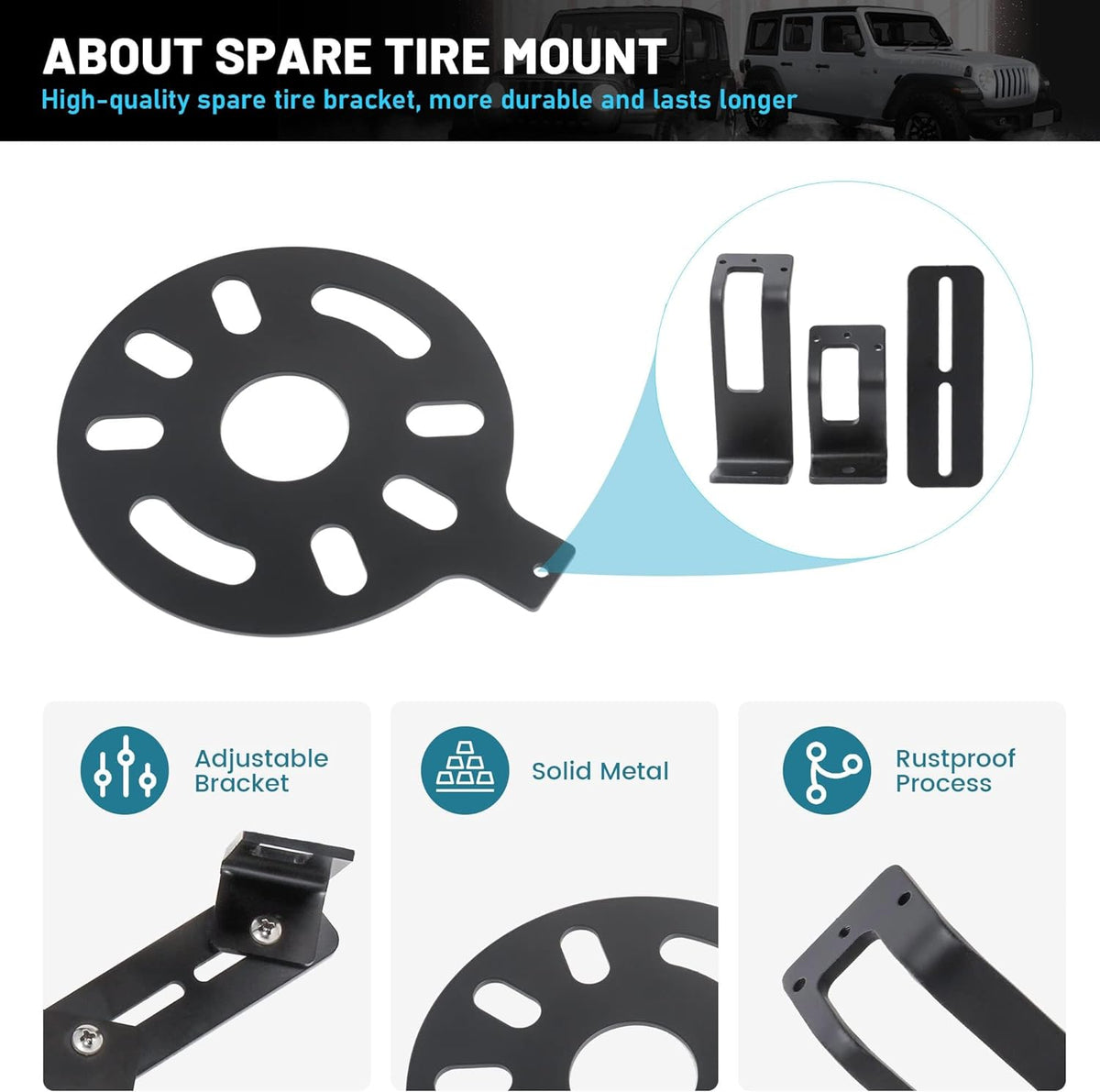

Designed for Jeep Wrangler spare tire mounting
Wired backup camera with CVBS video output
680×480 rear-view image resolution
IP68 waterproof protection for outdoor use
125° horizontal viewing angle
DC 5V–24V wide voltage input
0.1 Lux low-light performance
NTSC / PAL video standard support
Suitable for reversing, parking and trailer hitch assistance

Specifications

Model: EW-J1004
Resolution: 680 × 480
Video Output: CVBS
Standard: NTSC / PAL
Lens F NO.: 2.1 mm
Waterproof Level: IP68
Power Source: DC 5V–24V
Current: 30mA@12V
Viewing Angle — Diagonal: 170°
Viewing Angle — Horizontal: 125°
Viewing Angle — Vertical: 90°
Usable Illumination: 0.1 Lux
S/N Ratio: 38dB
Electronic Shutter: 1/50–1/100000S / 1/60–1/120000S
Working Temperature: -30°C~75°C
Storage Temperature: -40°C~85°C

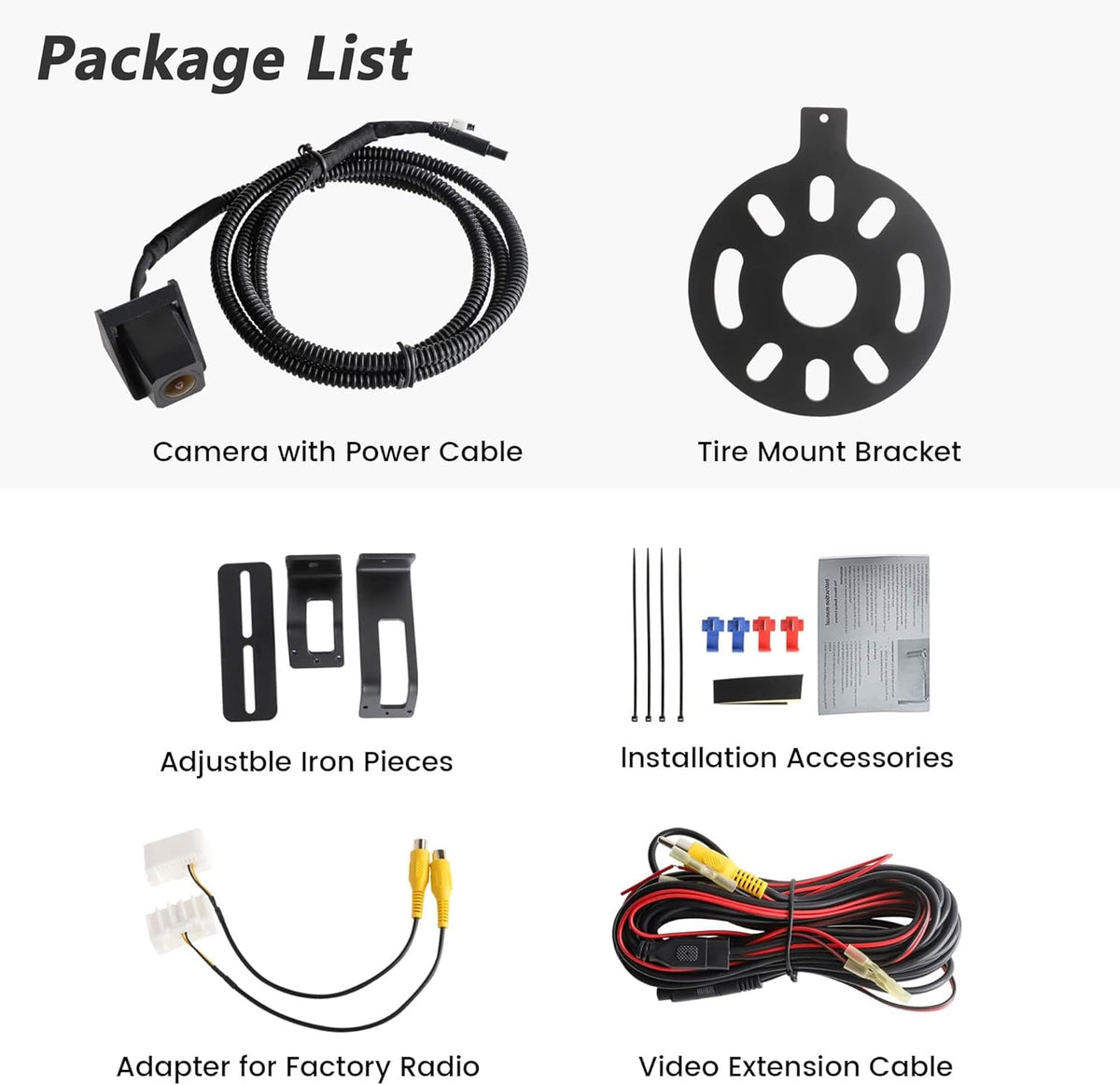

Accessories

1 × Spare tire mount backup camera

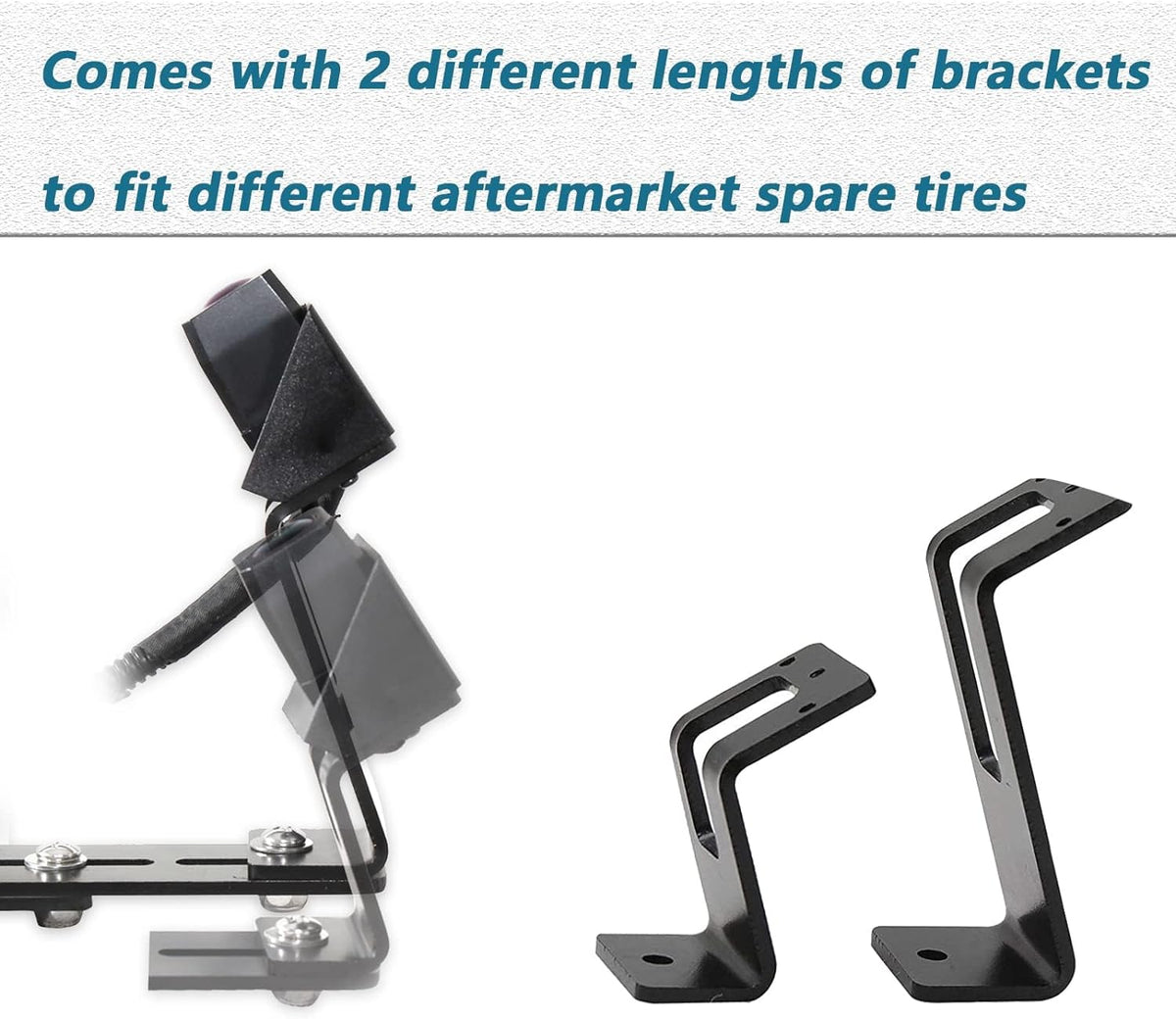

1 × Vehicle-specific mounting bracket
1 × Power/video cable
1 × RCA video connector / adapter cable
1 × Installation screw/accessory pack
1 × User manual / installation guide
1 × Packing box

Packaging

Dimension Of Giftbox:
Dimension Of Export Carton:
Qty Per Carton:
