120° Vehicle Side View Camera

Name: 120° Vehicle Side View Camera
Brand: EWAY
SKU: CAM-CS001-E1
Price: 28.99 USD
Availability: InStock

Model: EW-S003W

BSD IP68

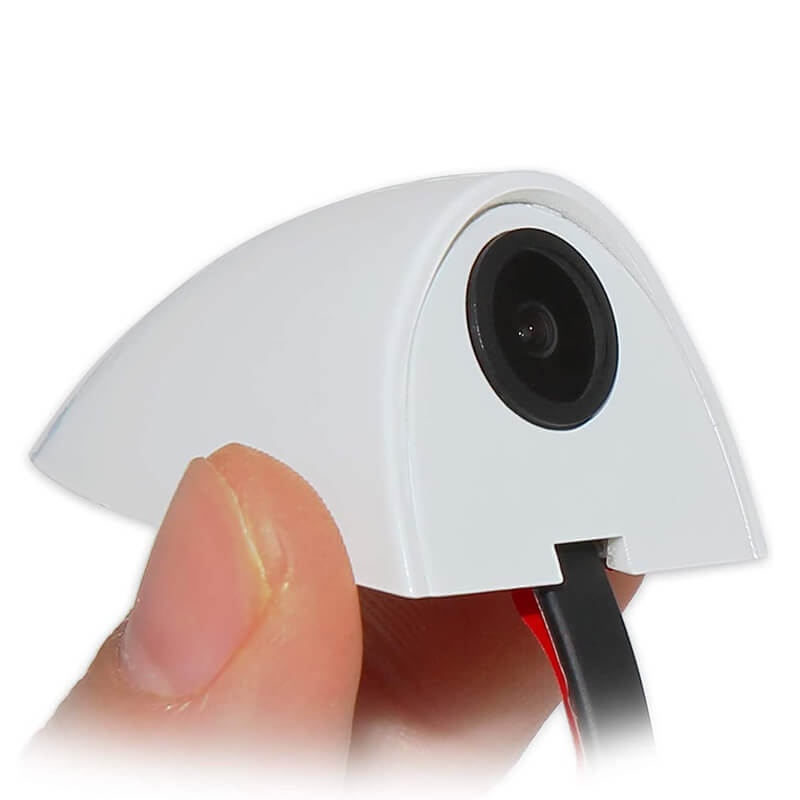

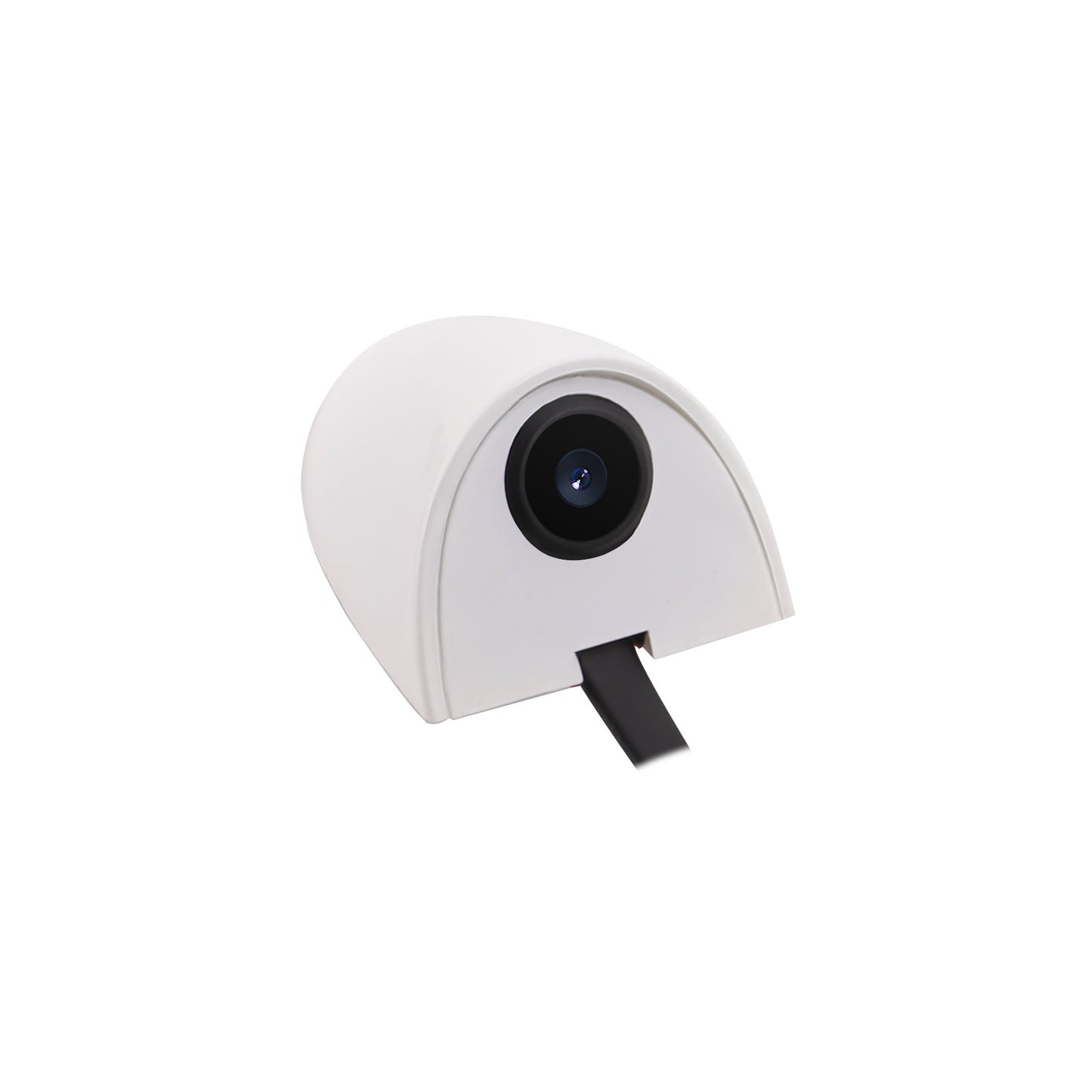

A white wired side camera with 125° horizontal view, IP68 waterproof protection and CVBS output for vehicle side monitoring and backup safety applications.

$28.99 /USD

Description

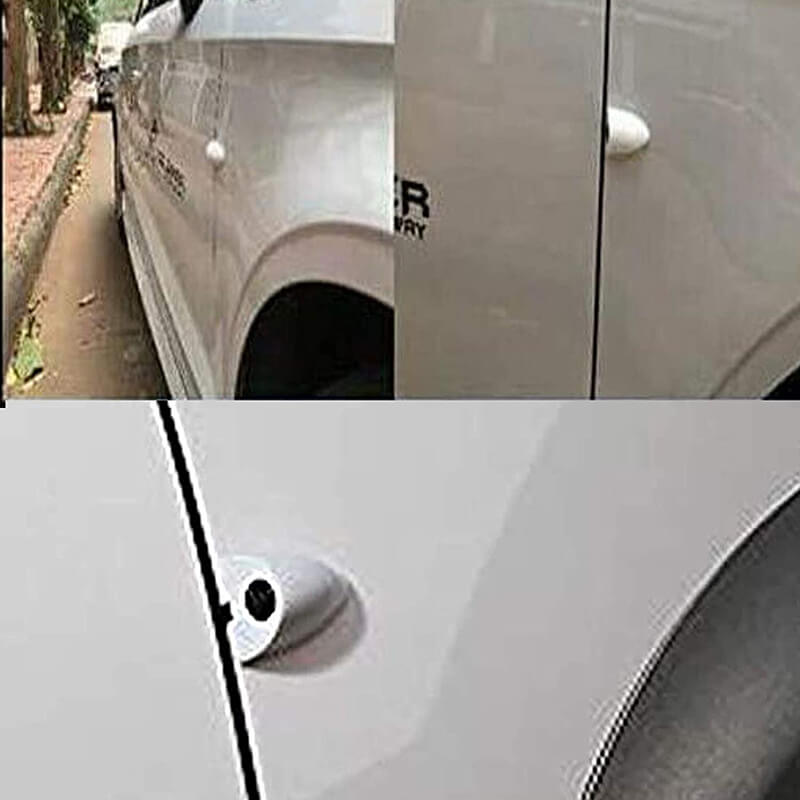

It is the white-housing version of EWAY’s 120° wired side camera. It is designed for vehicle side-view monitoring, reversing assistance and blind-spot observation, especially where a white camera housing better matches the vehicle exterior.

With 680×480 resolution, CVBS video output, NTSC/PAL support and IP68 waterproof protection, EW-S003W delivers a reliable and durable side camera option for trucks, vans, RVs, trailers and specialty vehicles.

Features

White wired side camera for vehicle side-view monitoring

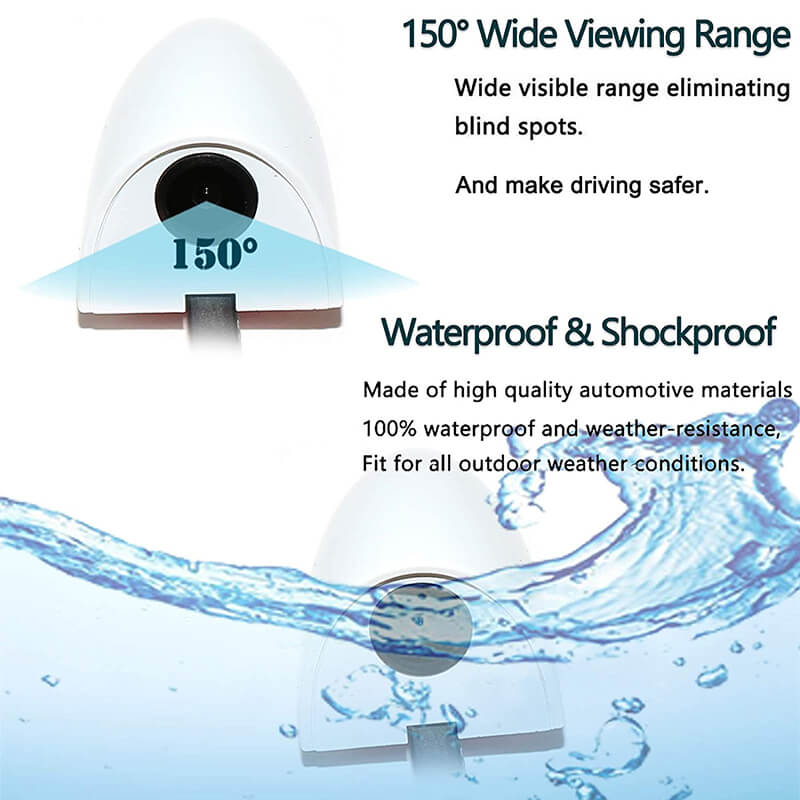

125° horizontal viewing angle
680×480 resolution with CVBS output
NTSC/PAL video format support
IP68 waterproof housing for outdoor installation
2.1mm lens for wide side coverage
0.1 Lux low-light performance
Suitable for white RVs, vans, trucks and trailers

Specifications

Model: EW-S003W
Resolution: 680 × 480
Video Output: CVBS
Standard: NTSC / PAL
Lens F No.: 2.1mm
Waterproof Level: IP68
Power Source: DC 12V
Current: 30mA@12V
Viewing Angle — Diagonal: 170°
Viewing Angle — Horizontal: 125°
Viewing Angle — Vertical: 90°
Usable Illumination: 0.1 Lux
S/N Ratio: 38dB
Electronic Shutter: 1/50–1/100000S / 1/60–1/120000S
Working Temperature: -30°C~75°C
Storage Temperature: -40°C~85°C

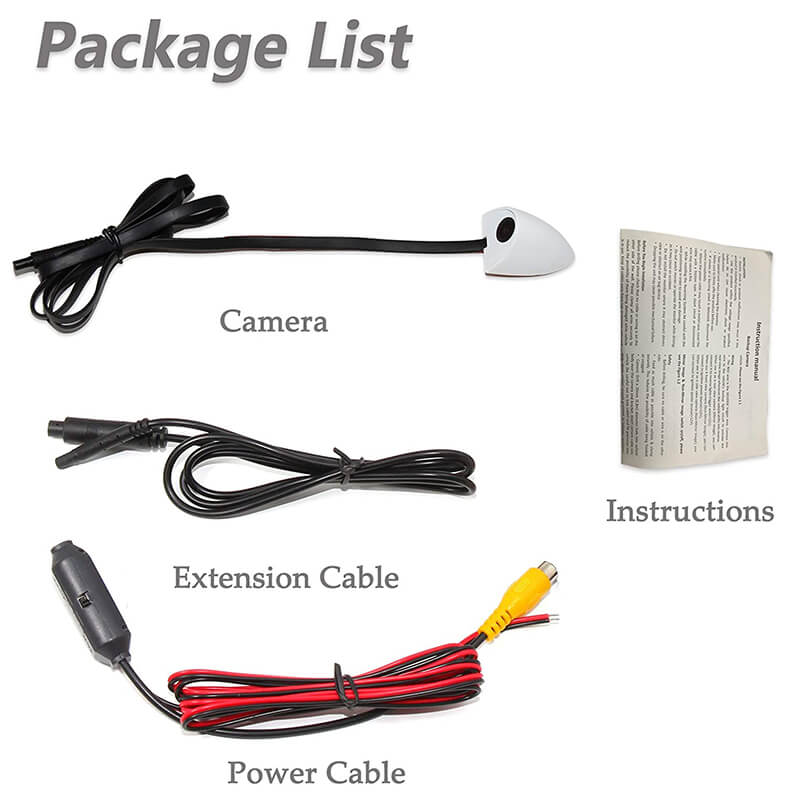

Accessories

2 × EW-S003W side cameras

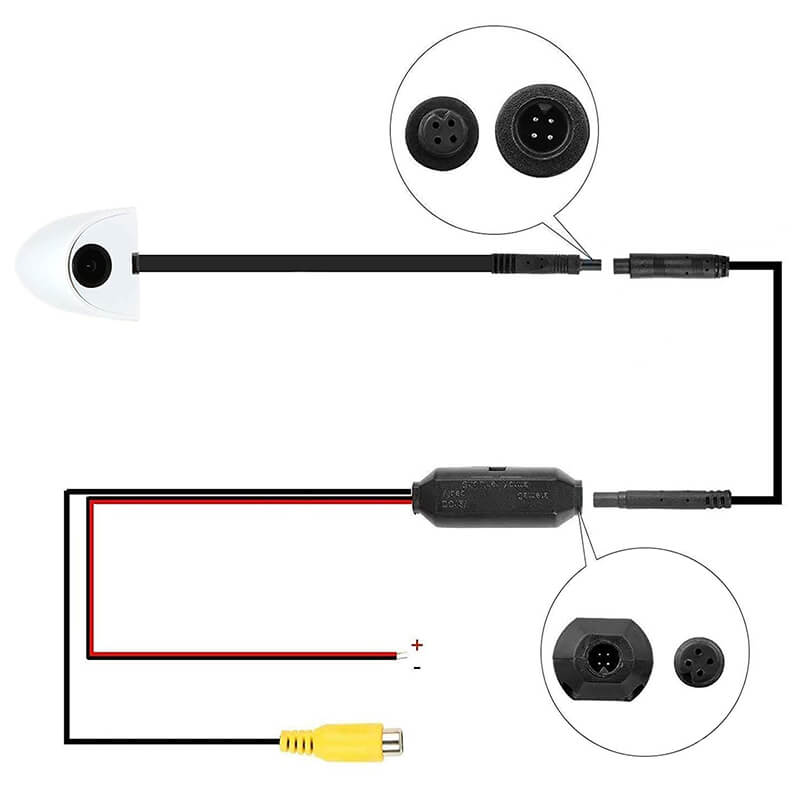

2 × Video and power cables
1 × Installation accessories pack
1 × User manual / installation guide
1 × Packing box

Packaging

Dimension Of Giftbox:
Dimension Of Export Carton:
Qty Per Carton:
