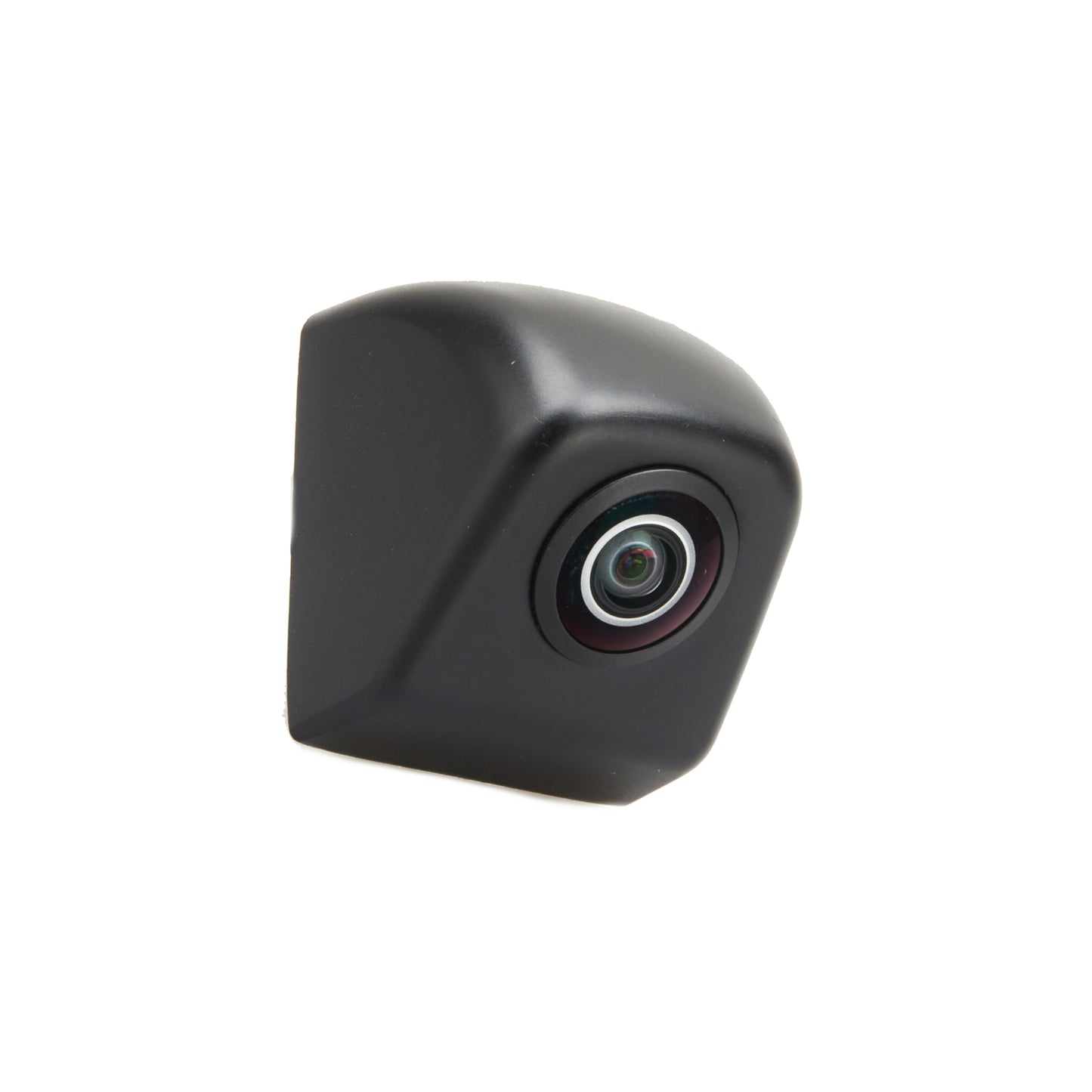

AHD 120° Transit Bus Surface Mount Backup Camera

AHD 120° Transit Bus Surface Mount Backup Camera

Name: AHD 120° Transit Bus Surface Mount Backup Camera
Brand: EWAY
SKU: CAM-D606
Price: 29.99 USD
Availability: InStock

Model: EW-U005

NTSC IP68

A compact surface mount backup camera with 18 infrared illuminators, IP67 waterproof protection and 0.1 Lux low-light performance for vehicle reversing systems.

$29.99 /USD

Description

A compact wired surface mount backup camera designed for vehicle reversing and rear-view monitoring. It offers 680×480 resolution, CVBS output and NTSC/PAL compatibility for easy integration with standard vehicle monitor systems.

With IP67 waterproof protection, 18 infrared illuminators, 0.1 Lux low-light performance and a wide operating temperature range, EW-U005 provides reliable visibility for backup systems used on cars, vans, trucks, RVs and other vehicles.

Features

Surface mount backup camera for vehicle reversing
18 infrared illuminators for night assistance
680×480 resolution with CVBS output
NTSC/PAL video format support
IP67 waterproof rating for outdoor use
170° diagonal and 110° horizontal viewing angle
0.1 Lux low-light performance
Compact housing for flexible installation

Specifications

Model: EW-U005
Resolution: 680 × 480
Video Output: CVBS
Standard: NTSC / PAL
Lens: 2.1mm
Waterproof Level: IP67
Power Source: DC 12V
Current: 30mA
Viewing Angle — Diagonal: 170°
Viewing Angle — Horizontal: 110°
Viewing Angle — Vertical: 75°
Usable Illumination: 0.1 Lux
S/N Ratio: 38dB
Electronic Shutter: 1/50–1/100000S / 1/60–1/120000S
Working Temperature: -30°C~70°C
Storage Temperature: -40°C~80°C

Accessories

1 × EW-U005 surface mount backup camera
1 × Video and power cable
1 × Installation accessories pack
1 × User manual / installation guide
1 × Packing box

Packaging

Dimension Of Giftbox:
Dimension Of Export Carton:
Qty Per Carton:
