Third Brake Light Backup Camera
For GMC Savana & Chevrolt Express Explorer Van 2003-2016

Third Brake Light Backup Camera For GMC Savana & Chevrolt Express Explorer Van 2003-2016

Name: Third Brake Light Backup Camera For GMC Savana & Chevrolt Express Explorer Van 2003-2016
Brand: EWAY
SKU: BL-CAM-GMC-BK
Price: 79.59 USD
Availability: OutOfStock

Model: EW-B002

NTSC IP68

A third brake light backup camera designed for GMC Savana, Chevrolet Express and Explorer cargo vans, with 170° rear view, IP68 waterproof protection and 6 IR lights.

$79.59 /USD

Description

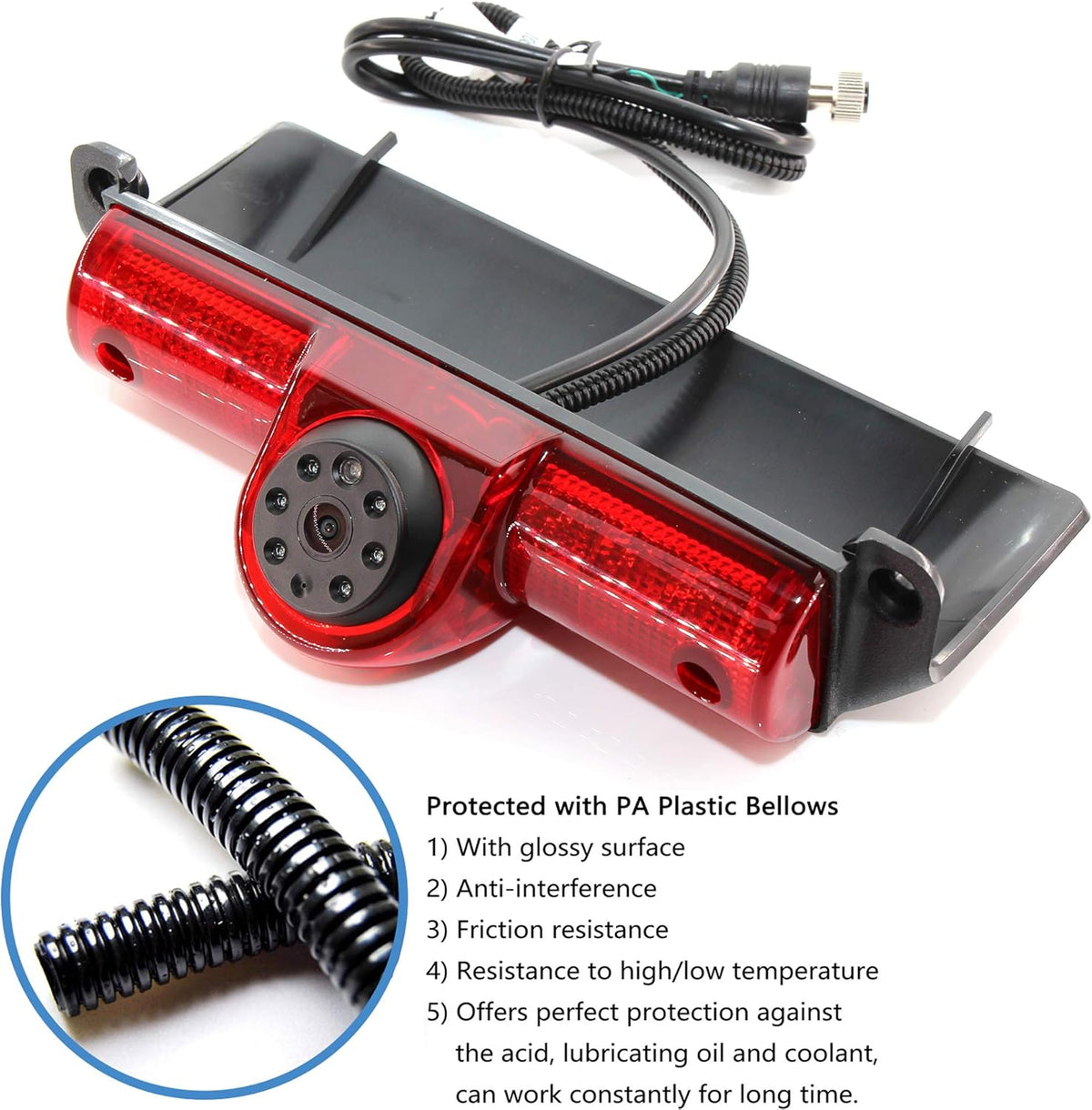

An aftermarket third brake light backup camera designed for GMC Savana, Chevrolet Express and Explorer cargo vans from 2003–2016. It replaces the high-mount brake light position to provide a factory-like rear view solution without drilling extra holes.

The camera uses a 1/3 PC3089 CMOS sensor, 1.7mm lens and 170° wide viewing angle to improve rear visibility for reversing and parking. With 6 infrared lights, IP68 waterproof protection and a 12V power input, it is suitable for cargo vans that need a clean, vehicle-specific rear view camera upgrade.

Features

Vehicle-specific third brake light backup camera
Fits GMC Savana, Chevrolet Express and Explorer cargo vans 2003–2016

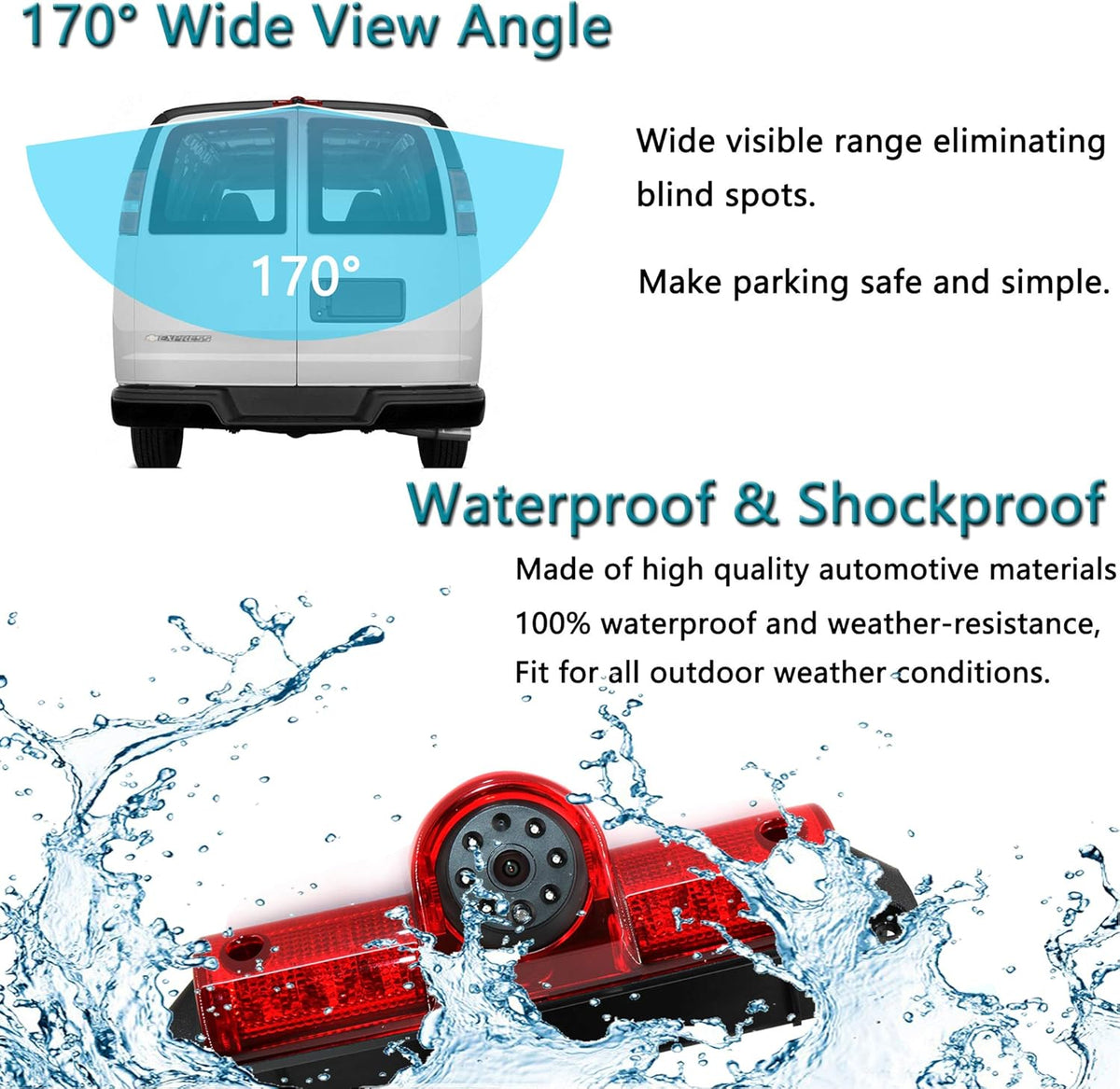

170° wide rear viewing angle
1/3 PC3089 CMOS image sensor
6 infrared lights for night vision
IP68 waterproof, shockproof and anti-interference design
1.7mm adjustable lens
Easy installation without drilling
Automotive plastic housing for factory-style fit

Specifications

Model: EW-B002
Product Type: Third brake light backup camera
Fitment: GMC Savana / Chevrolet Express / Explorer cargo vans 2003–2016
Image Sensor: 1/3 PC3089 CMOS
Resolution: 756(H) × 504(V)
Viewing Angle: 170°
Minimum Illumination: 0 Lux with LED on
Night Vision Distance: 35 ft
Power Voltage: 12V
Operating Temperature: -20°C~+70°C
Waterproof Rating: IP68
Lens: 1.7mm

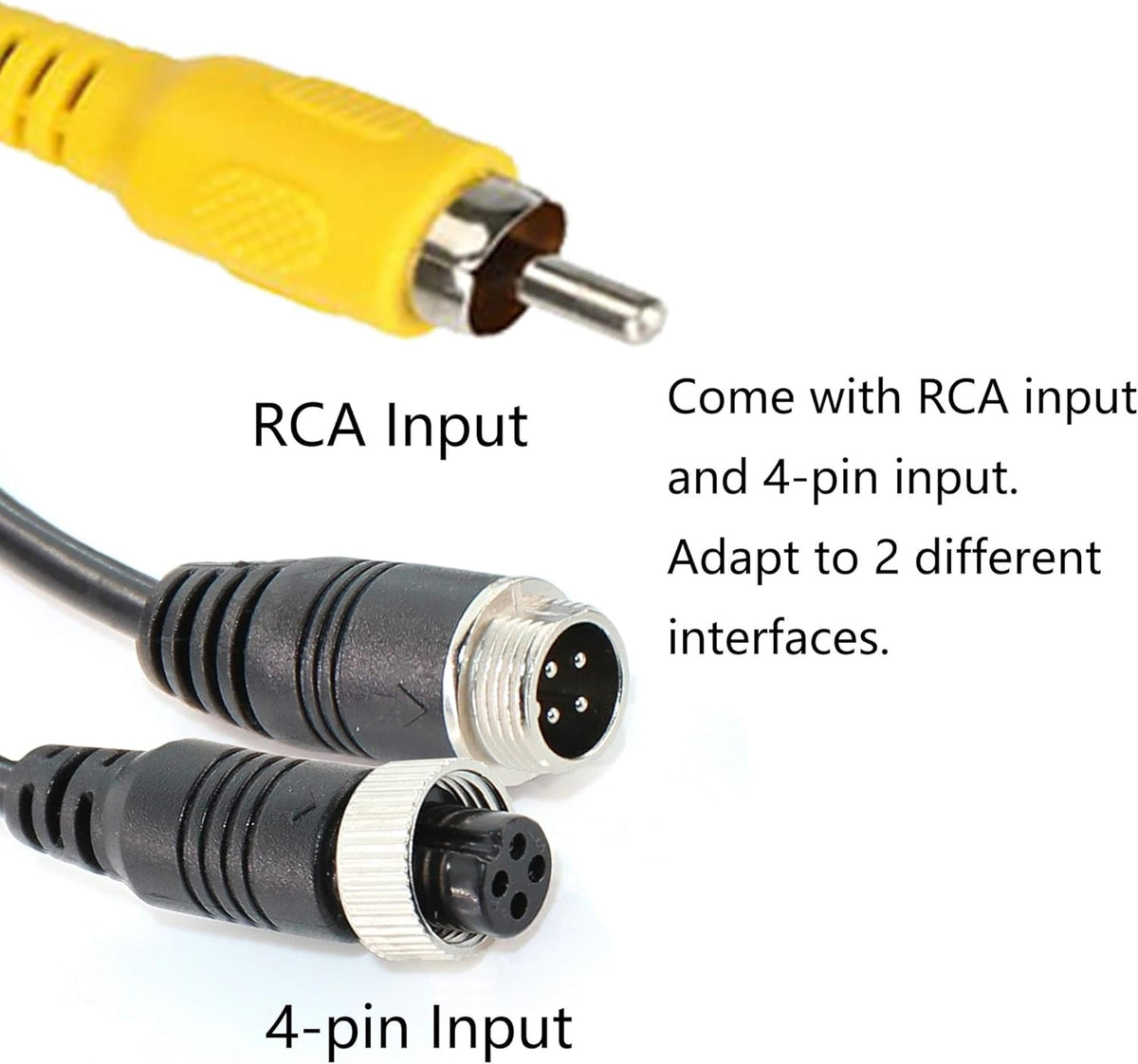

Video Connector: RCA composite video

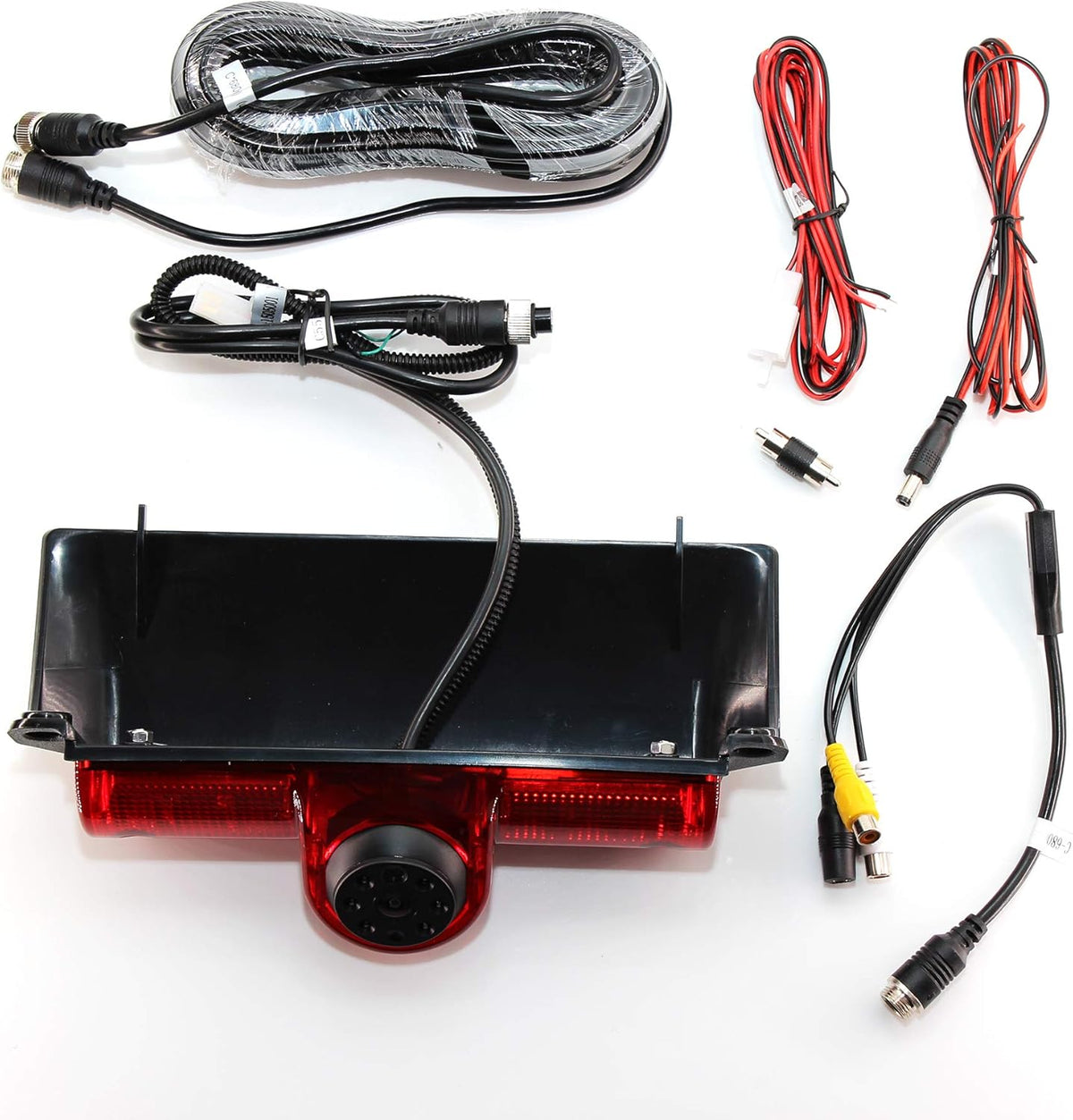

Accessories

1 × Brake light backup camera
1 × 10 m extension cable
1 × Video and power cable
1 × Installation accessories pack
1 × User manual / instruction sheet

Packaging

Dimension Of Giftbox:
Dimension Of Export Carton:
Qty Per Carton:
