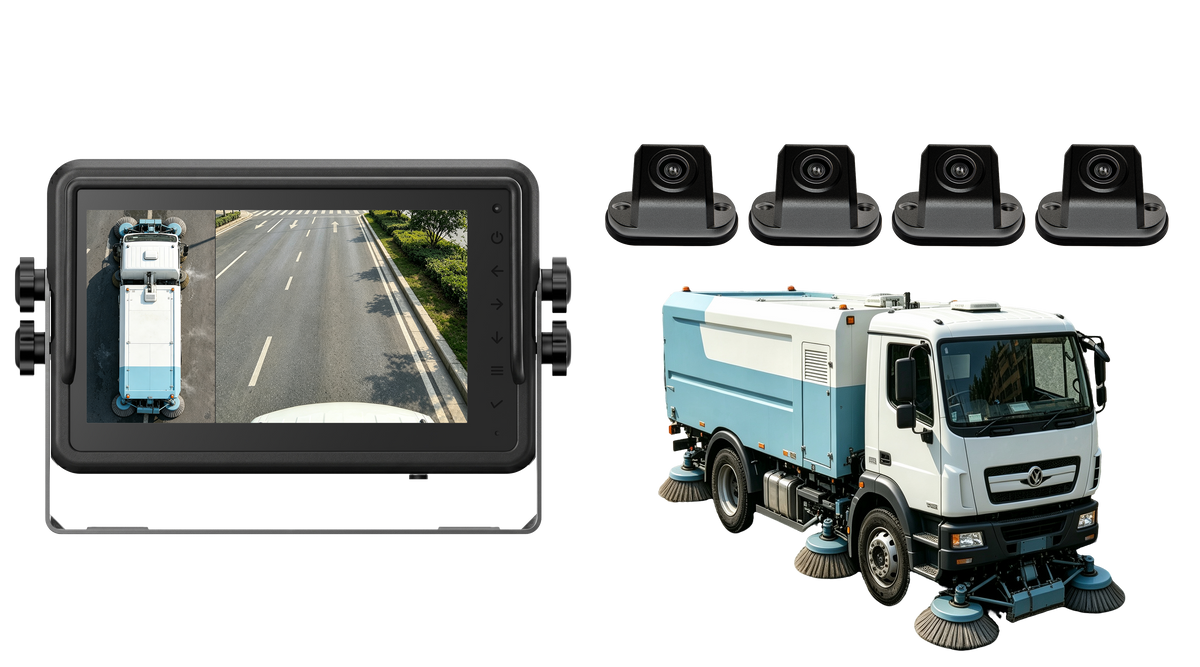

Municipal Sweeper AI 360 Camera System with Recording Monitor

Name: Municipal Sweeper AI 360 Camera System with Recording Monitor
Brand: EWAY
Availability: InStock

Model: EW-AI360

Municipal sanitation truck / sweeper AI 360 3D Around View

A municipal sweeper AI 360 camera system with integrated recording monitor for curbside cleaning routes and urban blind-zone safety.

Description

Municipal sweepers and sanitation trucks work in close contact with curbs, parked vehicles, cyclists and pedestrians. This AI 360 camera system helps drivers monitor the full perimeter during slow cleaning routes, reversing and turn-side operation.

The all-in-one monitor integrates 360° stitching, side blind spot alerts and recording. It is suitable for city sanitation fleets that need a practical camera system with low-light performance and reduced installation complexity.

Features

Designed for sanitation and sweeper vehicles working close to curbs, pedestrians and parked cars
360° view supports slow route operation, reversing and frequent stop-start movement
AI side warning helps monitor cyclists, vehicles or pedestrians near the vehicle sides
Built-in recording provides useful route and incident evidence for municipal operators
Low-light visibility supports early-morning and night cleaning schedules
Uses one integrated monitor instead of a separate AVM controller plus a separate MDVR
Supports optional GPS, external alarms, radar or parking sensor integration depending on project requirements

Specifications

Applicable vehicle: Municipal sanitation truck / sweeper
System configuration: 1 integrated AI 360° recording monitor + 4 panoramic cameras
Architecture: 360° stitching, AI processing, recording and storage integrated into the monitor
External AVM controller: Not required
External MDVR: Not required
Camera input: Max. 4 channels

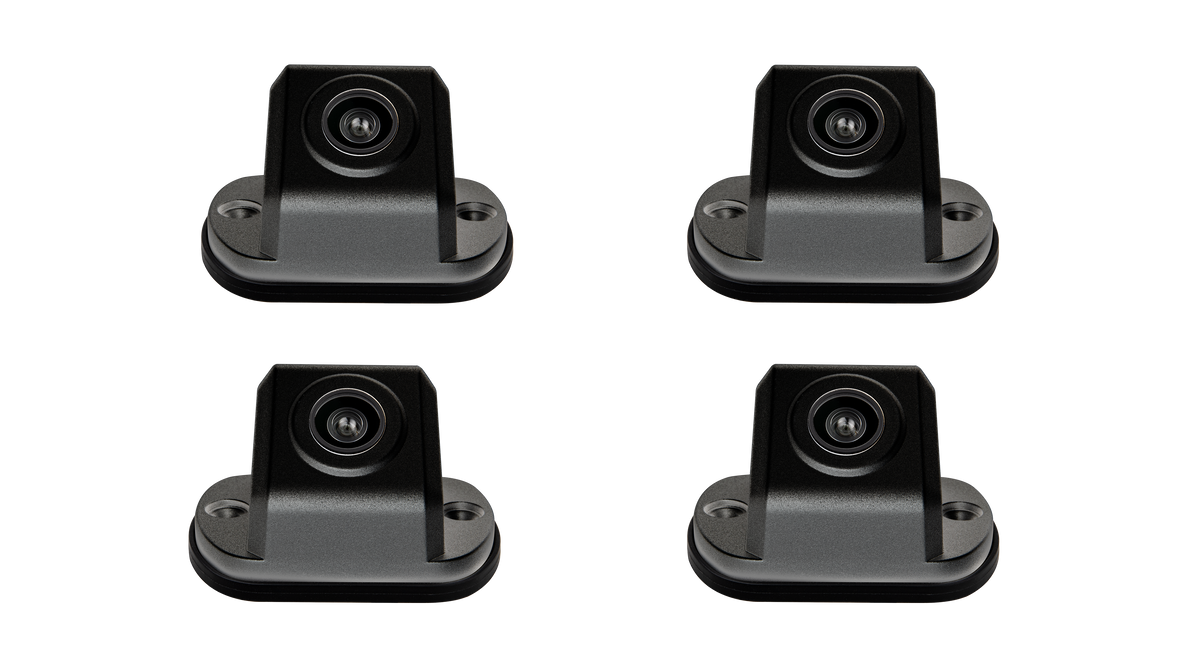

Camera resolution: 1080P wide-angle fisheye panoramic cameras
Camera positions: Front, rear, left and right
Display resolution: 1024 × 600
Display modes: 2D panoramic / 3D surround / individual camera view
AI functions: Dual-side BSD; other AI alerts subject to configuration
Recording: Max. 4CH 1080P, H.264, 4 Mbps / 2 Mbps selectable
Storage: Dual SD card slots, up to 2 × 512GB
Calibration: Automatic calibration, typical time approx. 1 minute
Trigger inputs: Reverse, left turn, right turn and configurable vehicle signals
Power supply: DC 10–32V
Operating temperature: -20°C to +70°C
Storage temperature: -40°C to +85°C
Low-light performance: Visible image at approx. 0.1 lux
Optional: GPS, external audible/visual alarm, millimeter-wave radar, ultrasonic parking sensors

Accessories

Standard package:
1 × Integrated AI 360° recording monitor
4 × 1080P panoramic fisheye cameras
4 × Camera extension cables
1 × Main power and trigger wiring harness
1 × Monitor mounting bracket
1 set × Camera brackets and installation hardware
4 × 360° calibration mats
1 × User and installation manual
Optional accessories: SD cards, millimeter-wave radar, ultrasonic parking sensors, external audible/visual alarm, GPS module, customized extension cables, vehicle-specific mounting brackets, remote control
