Forklift AI 360° Bird View Camera System for Warehouse Safety

Forklift AI 360° Bird View Camera System for Warehouse Safety

Name: Forklift AI 360° Bird View Camera System for Warehouse Safety
Brand: EWAY
Availability: InStock

Model: EW-AI360

Forklift AI 360 3D Around View

A forklift AI 360° bird view camera system for warehouse safety, low-speed maneuvering and side blind-zone awareness.

Description

Forklifts operate in warehouses, yards and loading areas where pedestrians, racks and pallets can be close to the vehicle. This AI 360° bird view camera system helps drivers see around the forklift during reversing, turning and tight aisle movement.

The integrated monitor combines 360° view processing, AI side blind spot warning and recording into one unit. It is suitable for forklift safety upgrades, industrial vehicle OEM integration and warehouse fleet management.

Features

Helps forklift operators observe pedestrians, racks, pallets and loading dock obstacles
Bird view and 3D view support low-speed turns, reversing and aisle operation
AI side warning can help reduce blind-zone risk in mixed pedestrian and vehicle areas
Compact monitor-based architecture fits industrial vehicle cabins with limited space
Recording supports warehouse safety review and operation accountability
Uses one integrated monitor instead of a separate AVM controller plus a separate MDVR
Supports optional GPS, external alarms, radar or parking sensor integration depending on project requirements

Specifications

Applicable vehicle: Forklift
System configuration: 1 integrated AI 360° recording monitor + 4 panoramic cameras
Architecture: 360° stitching, AI processing, recording and storage integrated into the monitor
External AVM controller: Not required
External MDVR: Not required
Camera input: Max. 4 channels
Camera resolution: 1080P wide-angle fisheye panoramic cameras
Camera positions: Front, rear, left and right
Display resolution: 1024 × 600
Display modes: 2D panoramic / 3D surround / individual camera view
AI functions: Dual-side BSD; other AI alerts subject to configuration
Recording: Max. 4CH 1080P, H.264, 4 Mbps / 2 Mbps selectable
Storage: Dual SD card slots, up to 2 × 512GB
Calibration: Automatic calibration, typical time approx. 1 minute
Trigger inputs: Reverse, left turn, right turn and configurable vehicle signals
Power supply: DC 10–32V
Operating temperature: -20°C to +70°C
Storage temperature: -40°C to +85°C
Low-light performance: Visible image at approx. 0.1 lux
Optional: GPS, external audible/visual alarm, millimeter-wave radar, ultrasonic parking sensors

Accessories

Standard package:

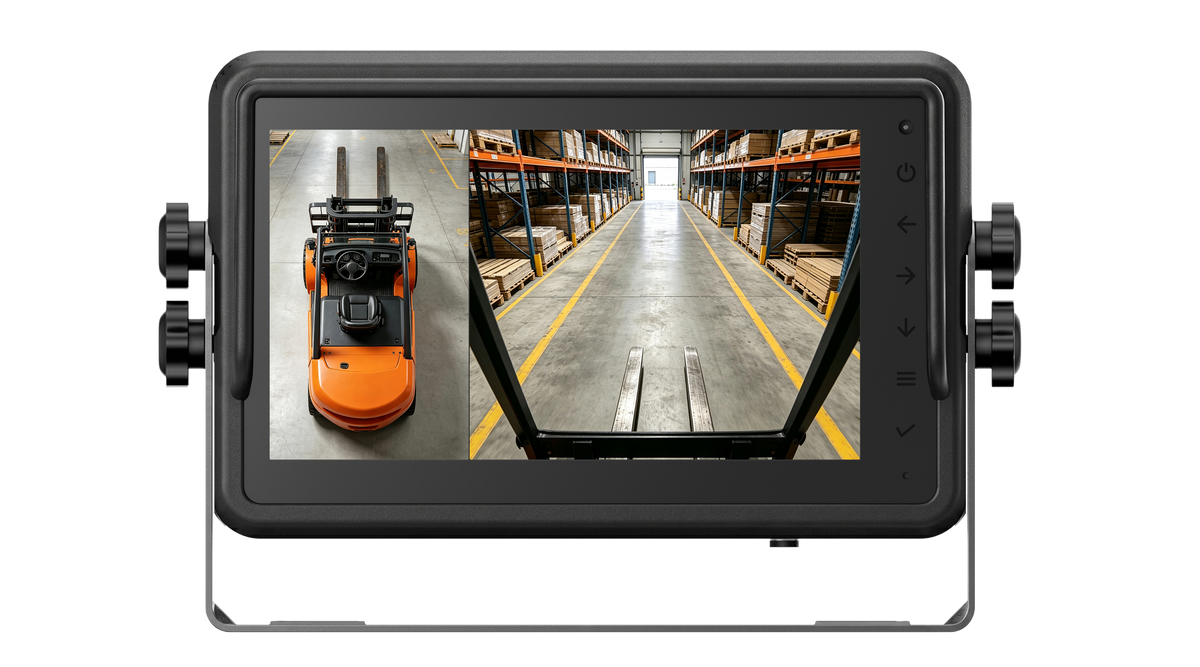

1 × Integrated AI 360° recording monitor

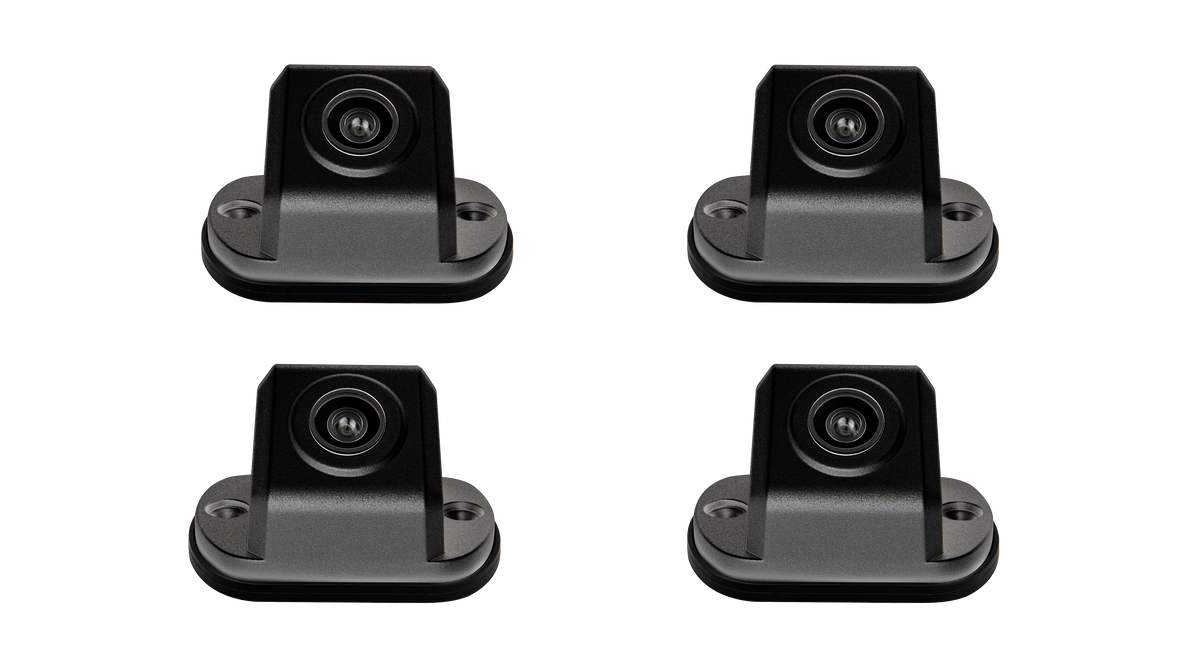

4 × 1080P panoramic fisheye cameras
4 × Camera extension cables
1 × Main power and trigger wiring harness
1 × Monitor mounting bracket
1 set × Camera brackets and installation hardware
4 × 360° calibration mats
1 × User and installation manual
Optional accessories: SD cards, millimeter-wave radar, ultrasonic parking sensors, external audible/visual alarm, GPS module, customized extension cables, vehicle-specific mounting brackets, remote control
